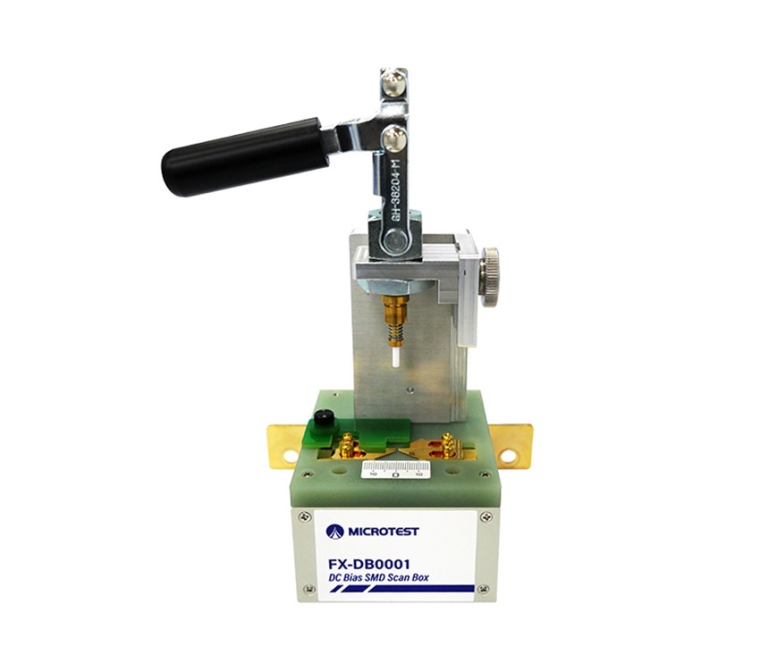

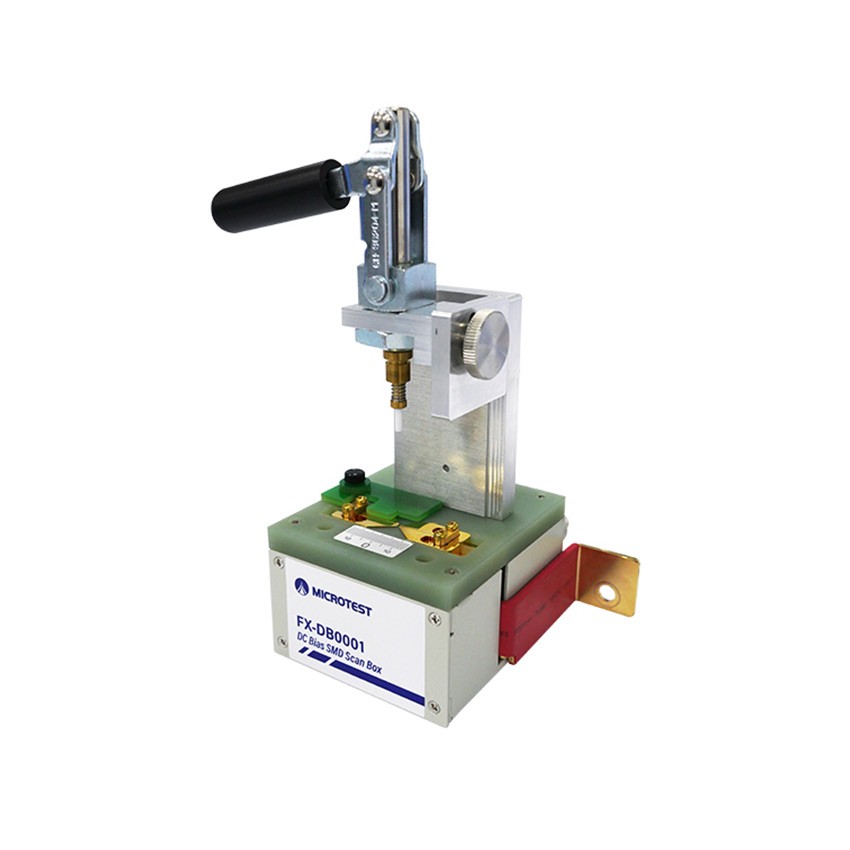

FX-DB0001 直流偏流测试治具 SMD型元件
应用测量
功率电感、共模电感、线圈
技术参数
FX-DB0001 |
Frequency | 100Hz～10MHz |
Max. Current | 120A Before Outputting Current ▲ Please assess the cross-sectional area of the DUT when setting the current |
Terminal Connector | 4-Terminal Pair, BNC |
DUT Connection | 4-Terminal |

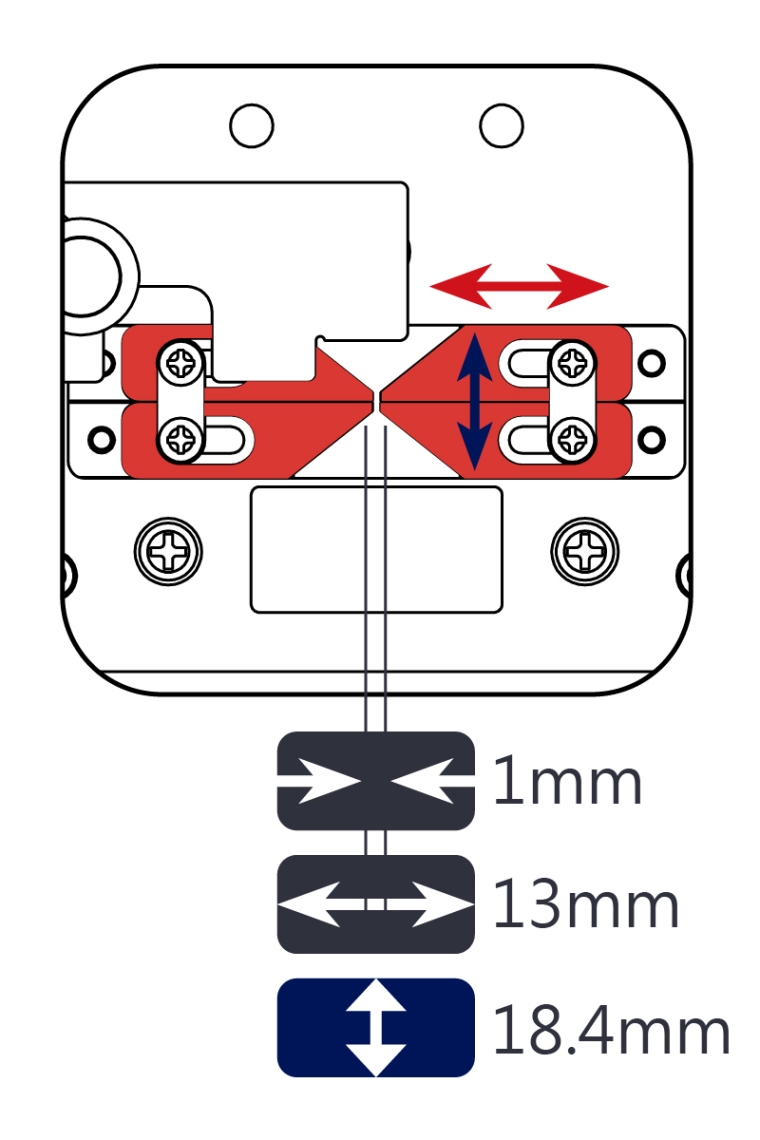

DUT Size | 2.5 x 2.0mm ～ 7.4 x 5.1mm |
Dimensions (approx.) | 178x221x135mm (W/H/D) |
Weight (approx.) | 1.32kg |
Operating Temperature | 10℃ ～ 40℃ |
Applicable Models | 6632+Series / 6632S+Series /6350+Series |
